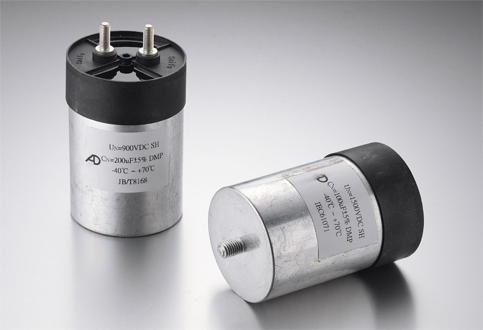

DMP-DC-Link(Photovoltaic wind power DC filter capacitor)

REQUEST A QUOTE PREV NEXT

Features

	Used in DC-Link circuits, Can replace electrolytic capacitor.
	Low ESR , high ripple current handling capabilities.
	Low inductance.
	Self-healing property.
	Long lifetime.
	Aluminum case, resin Filled.
Main Application	Used in wind power, solar power or other industrial frequency converter.
	Used in DC support filter circuit.
Dielectric	Polypropylene film
Case & Coating	Solvent resistant aluminum case with resin sealing. Flame retardant execution(UL94V-0)
Leads	Copper galvanized nuts
Installation	Whatever position assuring correct heat dissipation. Arrangement of many componenets with box walls in contact not admitted; suggeste minimum distance between side by side elements ≧ 1/8 of the box thickness. Box with lugs terminals must be free to correctly dissipate from all the body faces.
Reference standard	IEC61071-1, ROHS compliant

Electrical Characteristics

Working temperature	-40℃ to +85℃(100℃ ovserving voltage and current de-rating)
Max. permissible ambient temp	+70℃, operation at rated power, current, voltage and natural cooling.A17 +85℃ observing voltage and current de-rating.
Capacitance	370µF to 1200µF
Rated voltage	700VDC to 2600VDC
Tolerance	+-5%
Dissipation factor	Dissipation factor tan  at 100 Hz: ≤ 1.0 · 10-3
Life test	IEC 61071-1
Life expectancy	100000 hours for VRMS \|C/C\| ≤ 3%
Insulation resistance(IR)	≧3000s but need not exceed 30GΩ(typical value), when measured between termianls, at 25+-℃, after 1 minute of electrification at 100VDC.
Voltage between terminals VTT	2.15 · VRMS, 2 s
Voltage between terminals and aluminum can VTC	3000 V ACRMS, 2 s
Performance	Capacitance change ≦ +-2% DF change ≦ 0.0010 at 1KHz IR ≧ 50% of initial limit value

DIMENSIONS

Unit:mm

Cn (µF)	Rs (mΩ)	Imax (A)	Î (KA)	WN (Ws)	Ls (nH)	D×L (mm)	Drawing	m (Kg)	AD PART NO.
Un700VDC Us1050v Ur200v Ut-t1050VDC Ut-c 3000VAC
370	2.1	40	2.0	86	50	Φ76×130	A、B、C、D	0.7	DMP377J2JJY
440	1.8	40	2.3	103	50	Φ76×145	A、B、C、D	0.8	DMP377J2JJY
470	1.7	55	2.5	110	40	Φ86×130	A、B、C、D	0.9	DMP477J2JJY
560	1.4	40	3.0	132	60	Φ76×181	A、B、C、D	1.0	DMP567J2JJY
590	1.3	55	3.1	137	40	Φ86×145	A、B、C、D	1.0	DMP597J2JJY
730	1.1	55	3.9	171	50	Φ86×181	A、B、C、D	1.2	DMP737J2JJY
1030	1.0	55	5.1	252	70	Φ86×225	A、B、C、D	1.5	DMP1038J2JJY
Un 900VDC Us 1350v Ur 200V U t-t 1350 VDC Ut-c 3000 VAC
350	2.1	900V	2	148	50	Φ76 x 130	A、B、C、D	0.7	DMP357J2KJY
410	1.2	40	2.3	178	50	Φ76 x 135	A、B、C、D	0.8	DMP357J2KJY
470	1	55	2.5	191	40	Φ86 x 135	A、B、C、D	0.9	DMP357J2KJY
540	1.4	40	3	229	60	Φ76 x 181	A、B、C、D	1.0	DMP357J2KJY
560	1.3	55	3.1	238	40	Φ86 x 145	A、B、C、D	1.0	DMP357J2KJY
700	1.1	55	3.9	297	50	Φ86 x 181	A、B、C、D	1.2	DMP357J2KJY
1020	1.0	60	5.1	413	70	Φ86 x 225	A、B、C、D	1.5	DMP357J2KJY
Un 1100VDC Us 1650v Ur 250V U t-t 1650 VDC Ut-c 3000 VAC
240	3.3	50	1.5	170	50	Φ76 x 130	A、B、C、D	0.7	DMP247J3AJY
300	2.6	50	1.9	216	60	Φ76 x 145	A、B、C、D	0.8	DMP247J3AJY
320	2.4	65	2	232	40	Φ86 x 130	A、B、C、D	0.9	DMP247J3AJY
380	2.2	50	2.3	270	60	Φ76 x 181	A、B、C、D	1.0	DMP247J3AJY
400	2	65	4.2	242	50	Φ86 x 156	A、B、C、D	1.2	DMP247J3AJY
500	1.5	70	6	303	60	Φ86 x 186	A、B、C、D	1.3	DMP247J3AJY
600	1.6	60	4.2	363	70	Φ86 x 225	A、B、C、D	1.5	DMP247J3AJY
1200	0.9	100	1.8	726	80	Φ120 x 230	A、B、C、D	2.5	DMP247J3AJY
Un 1200VDC Us 1800v Ur 250V U t-t 1800 VDC Ut-c 3000 VAC
320	2.5	62	2.88	230	65	Φ76 x 155	A、B、C、D	1.1	DMP327J3BJY
420	1.8	65	2.97	238	50	Φ86 x 175	A、B、C、D	1.2	DMP327J3BJY
470	1.7	65	4.0	338	60	Φ86 x 195	A、B、C、D	1.5	DMP327J3BJY
Un 1300VDC Us 1950v Ur 300V U t-t 1950 VDC Ut-c 3000 VAC
160	2.1	40	1.8	138	50	Φ76 x 130	A、B、C、D	0.7	DMP477J3BJY
200	2.2	40	2.0	168	60	Φ76 x 145	A、B、C、D	0.8	DMP477J3BJY
220	2.0	50	2.2	185	40	Φ86 x 130	A、B、C、D	0.9	DMP477J3BJY
250	2.1	40	2.4	208	60	Φ76 x 181	A、B、C、D	1.0	DMP477J3BJY
270	1.4	50	2.6	227	50	Φ86 x 145	A、B、C、D	1.0	DMP477J3BJY
330	1.6	50	3.0	281	60	Φ86 x 181	A、B、C、D	1.2	DMP477J3BJY
460	2.1	60	4.1	390	70	Φ86 x 225	A、B、C、D	1.5	DMP477J3BJY

(Special Case Size Or Items On Requests)

Cn (µF)	Rs (mΩ)	Imax (A)	Î (KA)	WN (Ws)	Ls (nH)	D×L (mm)	Drawing	m (Kg)	AD PART NO.
Un1500VDC Us2250v Ur300v U t-t 2250VDC Ut-c 3000VAC
110	2.1	35	1.6	133	50	Φ76×130	A、B、C、D	0.7	DMP117J3CJY
140	2.2	35	2.0	159	60	Φ76×145	A、B、C、D	0.8	DMP147J3CJY
150	1.8	45	2.2	174	40	Φ86×130	A、B、C、D	0.9	DMP157J3CJY
190	1.7	35	2.8	217	60	Φ76×181	A、B、C、D	1.0	DMP197J3CJY
250	1.3	45	3.5	278	50	Φ86×181	A、B、C、D	1.2	DMP257J3CJY
345	1.9	60	5.0	389	70	Φ86×225	A、B、C、D	1.5	DMP347J3CJY
Un 1800VDC Us 2700v Ur 400V U t-t 2700 VDC Ut-c 3000 VAC
120	1.6	50	1.8	198	50	Φ86 x 130	A、B、C、D	0.9	DMP127J3DJY
140	2.0	40	2.0	226	60	Φ86 x 130	A、B、C、D	0.9	DMP147J3DJY
185	1.4	50	2.5	299	60	Φ86 x 130	A、B、C、D	1.2	DMP187J3DJY
260	2.4	60	3.0	424	70	Φ86 x 130	A、B、C、D	1.5	DMP267J3DJY
Un 2200VDC Us 3200v Ur 500V U t-t 3200 VDC Ut-c 3000 VAC
75	1.4	50	2.2	222	50	Φ86 x 130	A、B、C、D	0.9	DMP756J3LJY
90	2.0	40	3.2	260	60	Φ76 x 181	A、B、C、D	1.0	DMP906J3LJY
120	1.2	50	3.5	346	60	Φ86 x 181	A、B、C、D	1.2	DMP127J3LJY
165	1.9	60	4.5	477	70	Φ86 x 225	A、B、C、D	1.5	DMP167J3LJY
Un 2600VDC Us 4000v Ur 700V U t-t 4000 VDC Ut-c 4500 VAC
50	1.4	50	1.6	181	50	Φ86 x 130	A、B、C、D	0.7	DMP506J3EJY
65	1.5	40	2.0	218	60	Φ76 x 181	A、B、C、D	1.0	DMP656J3EJY
80	1.2	50	2.5	283	60	Φ86 x 181	A、B、C、D	1.2	DMP806J3EJY
115	2.0	60	3.3	392	70	Φ86 x 225	A、B、C、D	1.5	DMP117J3EJY

(Special Case Size Or Items On Requests)
