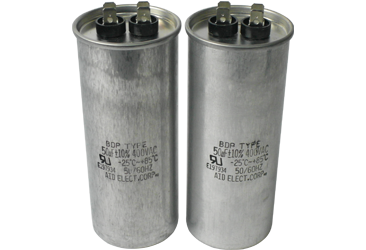

BDP Type (Aluminum Shell Round)

  • High stability
  • Non-inductive
  • Self-healing
  • Coating:plastics Aluminum case wax sealed
  • Capacitor Type, Terminal style and Provision of Mounting Bracket
  • Safety Mesure:Flame – Proof
  • Applicable Standard(UL, VDE, etc.)
  • Capacitance:10uF ~ 200uF
  • Capacitance Tolerance:J(±5%), U( -5, +10 %), K(±10%)
  • Voltage range:150V.AC ~ 660V.AC
  • Operating temperature:-25 ~ +70℃ / -40 ~ 85℃
  • Operating frequency:50, 60Hz
  • Test voltage:R.V. ×√2×175% for 1 minuite(VDC)
  • Between leading-out end and shell: 2200VAC,10S on breakdown
  • Dissipation factor:0.1% max at 50 or 60Hz 25℃

Features and Application
In the event of internal failure or aging at the end of the capacitor's operational life, an increasing Number of self-healing breakdowns may cause rising pressure inside the capacitor element. To prevent it from bursting, each capacitor element is designed with internal pressure sensitive interrupter(Protective Device). With rising pressure the cover will bulges to disconnect copper taps at weak points from the cover, and the current path is interrupted irreversibly to avoid the relative disaster.It is widely used for air-conditioners, refrigerators, generators, illuminating lamps, etc.

  • Test the standard:40/85/56 IEC 60068-1
  • Protective Mechanism:Explosion-proof (Type P1)
