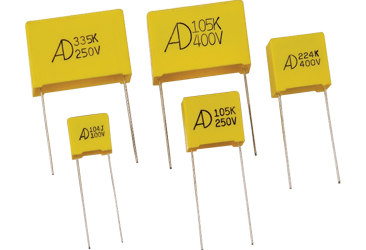

MPC Type Plastic square shell

REQUEST A QUOTE PREV NEXT

FEATURES

Application

Capacitors are primarily designed for coupling, decoupling, and filtering electronic circuits. They are only widely accepted in the radio and television industry, but also apply to industrial electronics.

High frequency, DC, AC and pulse high current occasions.
Such as: lamps, monitoring equipment, power supplies, etc.

Features

No defect, no fault, high reliability.
No short circuit, self-healing.
These types of capacitors are completely moisture-proof by coating epoxy or plastic case and mylar tape.

Featured Apps

Self-healing properties
Flame retardant epoxy resin (UL 94V-0)
Coating Type (Powder Encapsulation)
Available in loose boxes and loose polybags

Reference data

Capacitance range: 0.01 to 10㎌
Capacitance Tolerance: ±5%, ±10%
Rated voltage Vdc: 100V, 250V, 400V, 630V, 1000V
Climate: 40/105/56
Temperature range: -40℃〜+ 105℃
Coating material: Comply with UL94V-0 standard

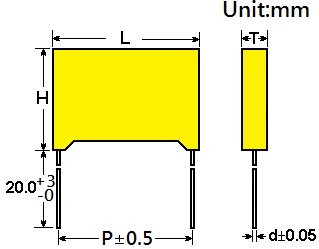

DIMENSIONS

Unit:mm

WV (Vdc)	Cap (μF)	W	T	H	P	d	Vac	PART NO.
100 (2A)	0.01	13	5	11	10	0.6	50	MPC103K(J)2AC00
	0.015	13	5	11	10	0.6		MPC153K(J)2AC00
	0.022	13	5	11	10	0.6		MPC223K(J)2AC00
	0.033	13	5	11	10	0.6		MPC333K(J)2AC00
	0.047	13	5	11	10	0.6		MPC473K(J)2AC00
	0.068	13	5	11	10	0.6		MPC683K(J)2AC00
	0.082	13	5	11	10	0.6		MPC823K(J)2AC00
	0.1	13	5	11	10	0.6		MPC104K(J)2AC00
	0.15	13	5	11	10	0.6		MPC154K(J)2AC00
	0.22	13	5	11	10	0.6		MPC224K(J)2AC00
	0.33	13	5	11	10	0.6		MPC334K(J)2AC00
	0.33	18	5	11	15	0.6		MPC334K(J)2AD00
	0.47	13	5	11	10	0.6		MPC474K(J)2AC00
	0.47	18	5	11	15	0.6		MPC474K(J)2AD00
	0.56	13	5	11	10	0.6		MPC564K(J)2AC00
	0.56	18	6	12	15	0.6		MPC564K(J)2AD00
	0.68	13	5	11	10	0.6		MPC684K(J)2AC00
	0.68	18	5	11	15	0.6		MPC684K(J)2AD00
	1	13	6	12	10	0.6		MPC105K(J)2AC00
	1	18	7.5	13.5	15	0.8		MPC105K(J)2AD00
	1.2	13	7	13	10	0.6		MPC125K(J)2AC00
	1.2	18	7.5	13.5	15	0.8		MPC125K(J)2AD00
	1.5	13	7	13	10	0.6		MPC155K(J)2AC00
	1.5	18	7.5	13.5	15	0.8		MPC155K(J)2AD00
	2.2	18	7.5	13.5	15	0.8		MPC225K(J)2AD00
	3	32	11	20	27.5	0.8		MPC305K(J)2AH00
	3.3	32	11	20	27.5	0.8		MPC335K(J)2AH00
	4.7	32	11	20	27.5	0.8		MPC475K(J)2AH00
	5	32	11	20	27.5	0.8		MPC505K(J)2AH00
	6.8	32	11	20	27.5	0.8		MPC685K(J)2AH00
	10	32	11	20	27.5	0.8		MPC106K(J)2AH00

DIMENSIONS

Unit:mm

WV (Vdc)	Cap (μF)	W	T	H	P	d	Vac	PART NO.
250 (2E)	0.01	13	5	11	10	0.6	125	MPC103K(J)2EC00
	0.015	13	5	11	10	0.6		MPC153K(J)2EC00
	0.022	13	5	11	10	0.6		MPC223K(J)2EC00
	0.033	13	5	11	10	0.6		MPC333K(J)2EC00
	0.047	13	5	11	10	0.6		MPC473K(J)2EC00
	0.068	13	5	11	10	0.6		MPC683K(J)2EC00
	0.082	13	5	11	10	0.6		MPC823K(J)2EC00
	0.1	13	5	11	10	0.6		MPC104K(J)2EC00
	0.15	13	5	11	10	0.6		MPC154K(J)2EC00
	0.22	13	5	11	10	0.6		MPC224K(J)2EC00
	0.33	13	5	11	10	0.6		MPC334K(J)2EC00
	0.33	18	6	12	15	0.8		MPC334K(J)2ED00
	0.47	18	6	12	15	0.8		MPC474K(J)2ED00
	0.56	18	6	12	15	0.6		MPC564K(J)2ED00
	0.68	18	6	12	15	0.6		MPC684K(J)2ED00
	1	18	8.5	14.5	15	0.8		MPC105K(J)2ED00
	1.2	18	8.5	14.5	15	0.8		MPC125K(J)2ED00
	1.5	18	8.5	14.5	15	0.8		MPC155K(J)2ED00
	2.2	32	11	20	27.5	0.8		MPC225K(J)2EH00
	3	32	12	24	27.5	0.8		MPC305K(J)2EH00
	3.3	32	12	24	27.5	0.8		MPC335K(J)2EH00
	4.7	32	16	25.5	27.5	0.8		MPC475K(J)2EH00
	5	32	16	25.5	27.5	0.8		MPC505K(J)2EH00
	6.8	32	16	25.5	27.5	0.8		MPC685K(J)2EH00
	10	32	18	24.5	27.5	0.8		MPC106K(J)2EH00

DIMENSIONS

Unit:mm

WV (Vdc)	Cap (μF)	W	T	H	P	d	Vac	PART NO.
400 (2G)	0.01	13	5	11	10	0.6	220	MPC103K(J)2GC00
	0.015	13	5	11	10	0.6		MPC153K(J)2GC00
	0.022	13	5	11	10	0.6		MPC223K(J)2GC00
	0.033	13	5	11	10	0.6		MPC333K(J)2GC00
	0.047	13	5	11	10	0.6		MPC473K(J)2GC00
	0.068	13	5	11	10	0.6		MPC683K(J)2GC00
	0.082	13	5	11	10	0.6		MPC823K(J)2GC00
	0.1	13	5	11	10	0.6		MPC104K(J)2GC00
	0.15	18	6	12	15	0.8		MPC154K(J)2GD00
	0.22	18	6	12	15	0.8		MPC224K(J)2GD00
	0.33	18	6	12	15	0.8		MPC334K(J)2GD00
	0.47	23	7.5	16	20.5	0.8		MPC474K(J)2GF00
	0.56	23	7.5	16	20.5	0.8		MPC564K(J)2GF00
	0.68	23	7.5	16	20.5	0.6		MPC684K(J)2GF00
	1	23	7.5	16	20.5	0.8		MPC105K(J)2GF00
	1.2	23	7.5	16	20.5	0.8		MPC125K(J)2GF00
	1.5	23	7.5	16	20.5	0.8		MPC155K(J)2GF00
	2.2	32	16	25.5	27.5	0.8		MPC225K(J)2GH00
	3	32	16	25.5	27.5	0.8		MPC305K(J)2GH00
	3.3	32	16	25.5	27.5	0.8		MPC335K(J)2GH00
	4.7	32	18	33	27.5	0.8		MPC475K(J)2GH00
	5	32	18	33	27.5	0.8		MPC505K(J)2GH00
	6.8	32	18	33	27.5	0.8		MPC685K(J)2GH00
	10	32	18	33	27.5	0.8		MPC106K(J)2GH00

DIMENSIONS

Unit:mm

WV (Vdc)	Cap (μF)	W	T	H	P	d	Vac	PART NO.
630 (2J)	0.01	13	5	11	10	0.6	400	MEC103K(J)2JC00
	0.015	13	5	11	10	0.6		MEC153K(J)2JC00
	0.022	13	5	11	10	0.6		MEC223K(J)2JC00
	0.033	13	5	11	10	0.6		MEC33K(J)2JC00
	0.047	13	5	11	10	0.6		MEC473K(J)2JC00
	0.047	18	5	11	15	0.6		MEC473K(J)2JD00
	0.068	18	6	12	15	0.8		MEC683K(J)2JD00
	0.082	18	7.5	13.5	15	0.8		MEC823K(J)2JD00
	0.1	18	7.5	13.5	15	0.8		MEC104K(J)2JD00
	0.15	18	10	15.5	15	0.8		MEC154K(J)2JD00
	0.22	32	11	20	27.5	0.8		MEC224K(J)2JH00
	0.33	32	11	20	27.5	0.8		MEC334K(J)2JH00
	0.47	32	11	20	27.5	0.8		MEC474K(J)2JH00
	0.56	32	11	20	27.5	0.8		MEC564K(J)2JH00
	0.68	32	11	20	27.5	0.8		MEC684K(J)2JH00
	1	32	11	20	27.5	0.8		MEC105K(J)2JH00
	2.2	32	16	25.5	27.5	0.8		MEC225K(J)2JH00
	3	32	18	33	27.5	0.8		MEC305K(J)2JH00
	3.3	32	18	33	27.5	0.8		MEC335K(J)2JH00
	4.7	32	18	33	27.5	0.8		MEC475K(J)2JH00
