MXC Series (R+C)

  • The RC unit is installed in parallel with the contacts be protected or in parallel with inductive loads (Figures 1~2).
  • For X2 - electromagnetic Interference suppression
  • Spark quenching
  • Noise suppression

  • Enclosure: Encapsulated in reinforced flame retardant, the plastic case is sealed with epoxy resin to meet the requirements of UL 94V-0

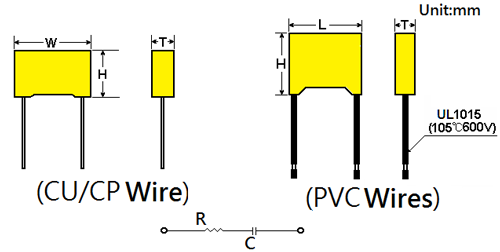

  • Leads: Encased in plastic housing/PVC wire
  • Climate Catalog: -40℃ ~ +100℃
  • Capacitance range: 0.01uF-0.5uF
  • Rated Voltage (UR): 400, 630VDC (50/60Hz) & 250VAC (50/60Hz)
  • Capacitance tolerance: K=±10% J=±5%
  • Insulation resistance: 15000MΩmin(at 25℃ 500VDC)
  • Dissipation coefficient: <1.0﹪at 25℃ for 50/60Hz (with the change of resistance)
  • Voltage test between terminals: R.V.×√2×1.75VDC (2Sec at 25℃)
  • Voltage test between terminal and case: 2500VAC applied for 2 seconds. at a temperature of 25±5℃
