SHT Type (Oval Axial Type, 2&4 Leads)

REQUEST A QUOTE PREV NEXT

FEATURES

Applications

Super-High-Voltage power supply of high-top medical treatment equipment.
High voltage converter.
Rated voltage Vdc: 100 V，250 V，400 V，630 V
High voltage coupling and carrier wave communication signal coupling in high voltage transmission line.
Protection facilities of large-scale machine and safety measurement apparatus.

Description of Products

Reference standard: GB/T2693 idt IEC 60384-1.
Metallized polypropylene/polyester film wound, non-inductive construction.
The polyester tape or specific tape wrap and epoxy resin end filled.
Excellent self-hearing property and temperature stability.
Dry construction assuring safety use.
Terminals including tinned copper wire, copper solder tags, copper screw, copper nut and others are available on request.

Technology Features

To adopt special tape to prevent insulation materials filled in high voltage devices from appearing crack, to avoid producing creepage appearance along with the crack.
Design of product can assure that there are not ion current inside capacitor under AC and high voltage pulse application.
More miniature size product available on request.

Specifications

Temperature Range	-40～+85℃
Capacitance Range	0.01μF～0.2μF
Capacitance Tolerance ΔC/C	J：±5%、K：±10%
Rated Voltage Un	3k～30kVdc/1k～10kVac (Others made to order available)
Voltage Proof Between Terminals UTT	1.4Un(60s)

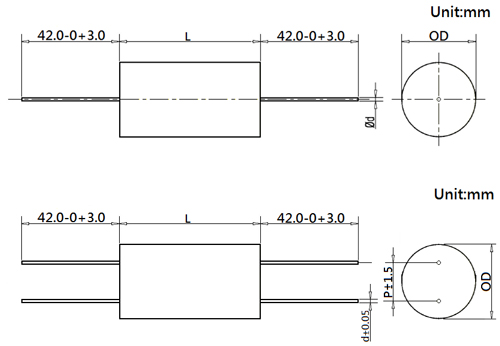

DIMENSIONS

Unit:mm

AD Part Number	uF	Ur Vdc	D ±2.0	L ±2.0	d ±0.05	dv/dt V/us	Ipp A
SHT202K4CA0	0.002	10~15K	15.0	67	0.8/1.0	2000	10
SHT472K4CA0	0.0047		17.0	67	1.0/1.2	2000	11
SHT682K4CA0	0.0068		18.59	67	1.0/1.2	2000	15.8
SHT822K4CA0	0.0082		19.63	67	1.0/1.2	2000	18.9
SHT103K4CA0	0.01		20.88	67	1.0/1.2	2000	20
SHT203K4CA0	0.02		26.70	67	1.2	2000	42
SHT303K4CA0	0.03		31.39	67	1.2	2000	60
SHT473K4CA0	0.047		37.98	67	1.2	2000	89.5
SHT503K4CA0	0.05		39.02	67	1.2	2000	100
SHT683K4CA0	0.068		44.75	67	1.2	2000	121
SHT823K4CA0	0.082		48.72	67	1.2	2000	141
SHT104K4CA0	0.1		53.37	67	1.2	2000	160
SHT204K4CA0	0.2		73.94	67	1.2	2000	283

SHT472K4DA0	0.0047	20K	19.06	67	1.0/1.2	3200	17.5
SHT682K4DA0	0.0068		21.26	67	1.0/1.2	3200	24.6
SHT822K4DA0	0.0082		24.16	67	1.0/1.2	3200	28.7
SHT103K4DA0	0.01		25.89	67	1.0/1.2	3200	34
SHT203K4DA0	0.02		27.95	67	1.2	3200	67
SHT303K4DA0	0.03		37.27	67	1.2	3200	92
SHT473K4DA0	0.047		44.60	67	1.2	3200	134
SHT503K4DA0	0.05		54.77	67	1.2	3200	131
SHT683K4DA0	0.068		56.37	67	1.2	3200	176
SHT823K4DA0	0.082		65.11	67	1.2	3200	198

DIMENSIONS

UNIT：（mm）

AD Part Number	uF	Ur Vdc	D ±2.0	L ±2.0	d ±0.05	dv/dt V/us	Ipp A
SHT102K4EA0	0.001	25K	16.29	67	1.0/1.2	15000	18
SHT152K4EA0	0.0015		17.97	67	1.0/1.2	15000	26.4
SHT222K4EA0	0.0022		20.06	67	1.0/1.2	15000	37.9
SHT332K4EA0	0.0033		22.92	67	1.0/1.2	15000	55
SHT472K4EA0	0.0047		26.08	67	1.2	15000	75
SHT682K4EA0	0.0068		30.15	67	1.2	15000	104
SHT822K4EA0	0.0082		32.57	67	1.2	15000	123.5
SHT103K4EA0	0.01		35.43	67	1.2	15000	146
SHT203K4EA0	0.02		48.17	67	1.2	15000	260
SHT303K4EA0	0.03		58.09	67	1.2	15000	359
SHT473K4EA0	0.047		71.79	67	1.2	15000	507

SHT102K4FA0	0.001	30K	18.17	67	1.0/1.2	50000	58.7
SHT152K4FA0	0.0015		20.46	67	1.0/1.2	50000	85.7
SHT222K4FA0	0.0022		23.25	67	1.0/1.2	50000	121.5
SHT332K4FA0	0.0033		27.02	67	1.0/1.2	50000	175
SHT472K4FA0	0.0047		31.12	67	1.2	50000	239.5
SHT682K4FA0	0.0068		36.36	67	1.2	50000	328.9
SHT822K4FA0	0.0082		39.45	67	1.2	50000	385
SHT103K4FA0	0.01		43.08	67	1.2	25000	227
SHT203K4FA0	0.02		59.21	67	1.2	25000	396
SHT303K4FA0	0.03		71.70	67	1.2	25000	540

Special Case Size or Items on Requests
