> MPH Type (Automotive Grade DC Film Capacitor)
MPH Type (Automotive Grade DC Film Capacitor)
REQUEST A QUOTE
PREV
FEATURES
Main application
Polypropylene film and bimetallized electrodes, axial type
Excellent self-healing property
Low loss, small inherent temperature rise
Widely used in high voltage and high frequency circuits
Wrapped with polyester tape and end filled with flame retardant epoxy resin (UL94-V0)
Electrical Characteristics
Operating temperature
-55℃ to +105℃ (100℃ observe voltage and current derating)
Maximum. allowable ambient temperature
+70℃, rated power, current, voltage and free cooling
+85℃ to observe voltage and current derating
Capacitance
0.001uF to 0.22uF
Rated voltage
1250VDC to 2000VDC
Capacitance
±5%; ±10%
(DF)Dissipation Factor (DF)
Measured at 1KHz and 25+-5℃
When Cr ≦1.5uF,≦4x10-4
When Cr ≦1.5uF, ≦6x10-4
(IR)Insulation Resistance (IR)
≧3000s but not more than 30GΩ (typ.), when between measurements
Terminals, at 25+-°C, after 1 minute of energization at 100VDC
Test voltage between terminals (Ut)
1.6xUr (DC) application 10s/2x Ur (DC) application 2s, 25+-5℃
Test voltage (Utc) between terminal and case
Applied to 3KV 50/60Hz 60x at 25+-5℃
Performance
Capacitance change≦+-2%
DF change≦0.0010 at 1KHz
IR ≧ 50% of initial limit
Guideline
◎IEC61071, IEC 60068, ROHS Compliant

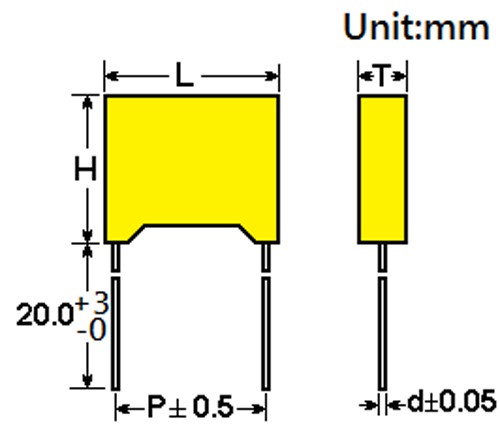

DIMENSIONS
Unit:mm
WV
(Vdc)
Cap
(μF)
W
T
H
P
d
Vac
PART NO.
1250
(3B)
0.001
13
5
11
10
0.6
500
MPH102K(J)3BC00
0.0022
13
6
12
10
0.6
MPH222K(J)3BC00
0.0022
18
5
11
15
0.6
MPH222K(J)3BD00
0.0033
13
6
12
10
0.6
MPH332K(J)3BC00
0.0033
18
5
11
15
0.6
MPH332K(J)3BD00
0.0039
13
6
12
10
0.6
MPH392K(J)3BC00
0.0039
18
5
11
15
0.6
MPH392K(J)3BD00
0.0047
13
6
12
10
0.6
MPH472K(J)3BC00
0.0047
18
6
12
15
0.6
MPH472K(J)3BD00
0.0056
13
6
12
10
0.6
MPH562K(J)3BC00
0.0056
18
6
12
15
0.6
MPH562K(J)3BD00
0.0068
18
7.5
13.5
15
0.6
MPH682K(J)3BD00
0.01
18
8.5
14.5
15
0.6
MPH103K(J)3BD00
0.015
18
10
17
15
0.6
MPH153K(J)3BD00
0.033
18
7.5
13.5
15
0.8
MPH333K(J)3BD00
0.047
18
10
17
15
0.8
MPH473K(J)3BD00
0.05
18
10
17
15
0.8
MPH503K(J)3BD00
0.05
26.5
6
15
22.5
0.8
MPH503K(J)3BG00
0.068
18
11
19
15
0.8
MPH683K(J)3BD00
0.068
26.5
23
13
22.5
0.8
MPH683K(J)3BG00
0.1
18
8.5
14.5
15
0.8
MPH104K(J)3BD00
0.12
18
8.5
18
15
0.8
MPH124K(J)3BD00
0.15
18
11
19
15
0.8
MPH154K(J)3BD00
0.22
26.5
10
19
22.5
0.8
MPH224K(J)3BG00
DIMENSION
WV
(Vdc)
Cap
(μF)
W
T
H
P
d
Vac
PART NO.
1600
(3C)
0.001
13
5
11
10
0.6
700
MPH102K(J)3CC00
0.0022
13
6
12
10
0.6
MPH222K(J)3CC00
0.0022
18
5
11
15
0.6
MPH222K(J)3CD00
0.0033
13
6
12
10
0.6
MPH332K(J)3CC00
0.0033
18
5
11
15
0.6
MPH332K(J)3CD00
0.0039
13
6
12
10
0.6
MPH392K(J)3CC00
0.0039
18
5
11
15
0.6
MPH392K(J)3CD00
0.0047
13
6
12
10
0.6
MPH472K(J)3CC00
0.0047
18
6
12
15
0.6
MPH472K(J)3CD00
0.0056
13
6
12
10
0.6
MPH562K(J)3CC00
0.0056
18
6
12
15
0.6
MPH562K(J)3CD00
0.0068
18
7.5
13.5
15
0.6
MPH682K(J)3CD00
0.01
18
8.5
14.5
15
0.6
MPH103K(J)3CD00
0.015
18
10
17
15
0.6
MPH153K(J)3CD00
0.033
18
7.5
13.5
15
0.8
MPH333K(J)3CD00
0.047
18
10
17
15
0.8
MPH473K(J)3CD00
0.05
18
10
17
15
0.8
MPH503K(J)3CD00
0.05
26.5
6
15
22.5
0.8
MPH503K(J)3CG00
0.068
18
11
19
15
0.8
MPH683K(J)3CD00
0.1
18
8.5
14.5
15
0.8
MPH104K(J)3CD00
0.12
18
8.5
18
15
0.8
MPH124K(J)3CD00
0.15
18
11
19
15
0.8
MPH154K(J)3CD00
0.22
26.5
10
19
22.5
0.8
MPH224K(J)3CG00
DIMENSIONS
Unit:mm
WV
(Vdc)
Cap
(μF)
W
T
H
P
d
Vac
PART NO.
2000
(3D)
0.001
13
5
11
10
0.6
900
MPH102K(J)3DC00
0.0022
13
6
12
10
0.6
MPH222K(J)3DC00
0.0022
18
5
11
15
0.6
MPH222K(J)3DD00
0.0033
13
6
12
10
0.6
MPH332K(J)3DC00
0.0033
18
5
11
15
0.6
MPH332K(J)3DD00
0.0039
13
6
12
10
0.6
MPH392K(J)3DC00
0.0039
18
5
11
15
0.6
MPH392K(J)3DD00
0.0047
13
6
12
10
0.6
MPH472K(J)3DC00
0.0047
18
6
12
15
0.6
MPH472K(J)3DD00
0.0056
13
6
12
10
0.6
MPH562K(J)3DC00
0.0056
18
6
12
15
0.6
MPH562K(J)3DD00
0.0068
18
7.5
13.5
15
0.6
MPH682K(J)3DD00
0.01
18
8.5
14.5
15
0.6
MPH103K(J)3DD00
0.015
18
10
17
15
0.6
MPH153K(J)3DD00
0.033
18
7.5
13.5
15
0.8
MPH333K(J)3DD00
0.047
18
10
17
15
0.8
MPH473K(J)3DD00
0.05
18
10
17
15
0.8
MPH503K(J)3DD00
0.05
26.5
6
15
22.5
0.8
MPH503K(J)3DG00
0.068
18
11
19
15
0.8
MPH683K(J)3DD00
0.1
18
8.5
14.5
15
0.8
MPH104K(J)3DD00
0.12
18
8.5
18
15
0.8
MPH124K(J)3DD00
0.15
18
11
19
15
0.8
MPH154K(J)3DD00
0.22
26.5
10
19
22.5
0.8
MPH224K(J)3DG00
Customized design and service
