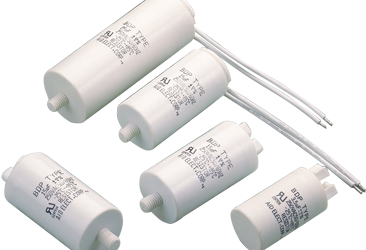

BDP-Lighting (Round Shell)

FEATURES
Introduction
  • High stability.
  • Non-inductive.
  • Self-healing.
  • Molded circular case of white polyester-glass which is flame retardant per UL 94-V0.
  • The epoxy filing used to fill the enclosure and protect the capacitor which is flame retardant per UL 94-V0.
  • To improve power factor:Apply to Electronic Ballast.
  • The internal part have three course of action.
  • Applicable Standard(UL E197934)

Leads Type
  • P:UL 1015 or UL1007 stranded PVC insulation wire.

Base Specification:
  • (a)IEC60252-1:2001:S3 Used for AC motor application
  • (b)Standard(s) for Safety:UL 810 – Capacitors CSA C22.2, for Power Factor Correction
  • (c)JIS C 4908:Used for electrical apparatus
  • (d)CNS 4327:Used for electrical apparatus

◎Climate Category:

In accordance with IEC60068-2-3

  • (a) H=Minimum Limit Temperature:-25℃
  • (b) S=Maximum Limit Temperature:+85℃
  • (c) F=Humidity Category:
    Average relative humidity≦75
    95﹪for 30 days per year, continuously
    85﹪for the remaining days, occasionally

Specification
  • Electrodes:Schematic Presentation Of Metallized Film +Thermal fuse Capacitor.
  • Coating:plastics case epoxy resin sealed
  • Operating temperature:- 25℃~ + 85℃
  • Voltage range:250,300VAC
  • Capacitance:3.5μ F ~ 100 μF
  • Capacitance tolerance:J( ±5%),K( ±10%),U(+10%,- 5%)
  • Operating frequency:50, 60Hz
  • Test voltage:R.V. ×√2×175% for 1 minuite(VDC)
  • Insulation resistance:Keep resistor condition discharge resistor will be 1.2MΩ, in other words, if will be up 1000MΩ.
  • Dissipation factor:0.1% max at 50 or 60Hz 25℃
